EVO 2 Racer - Digital Download

Compact Power. Build It Your Way.

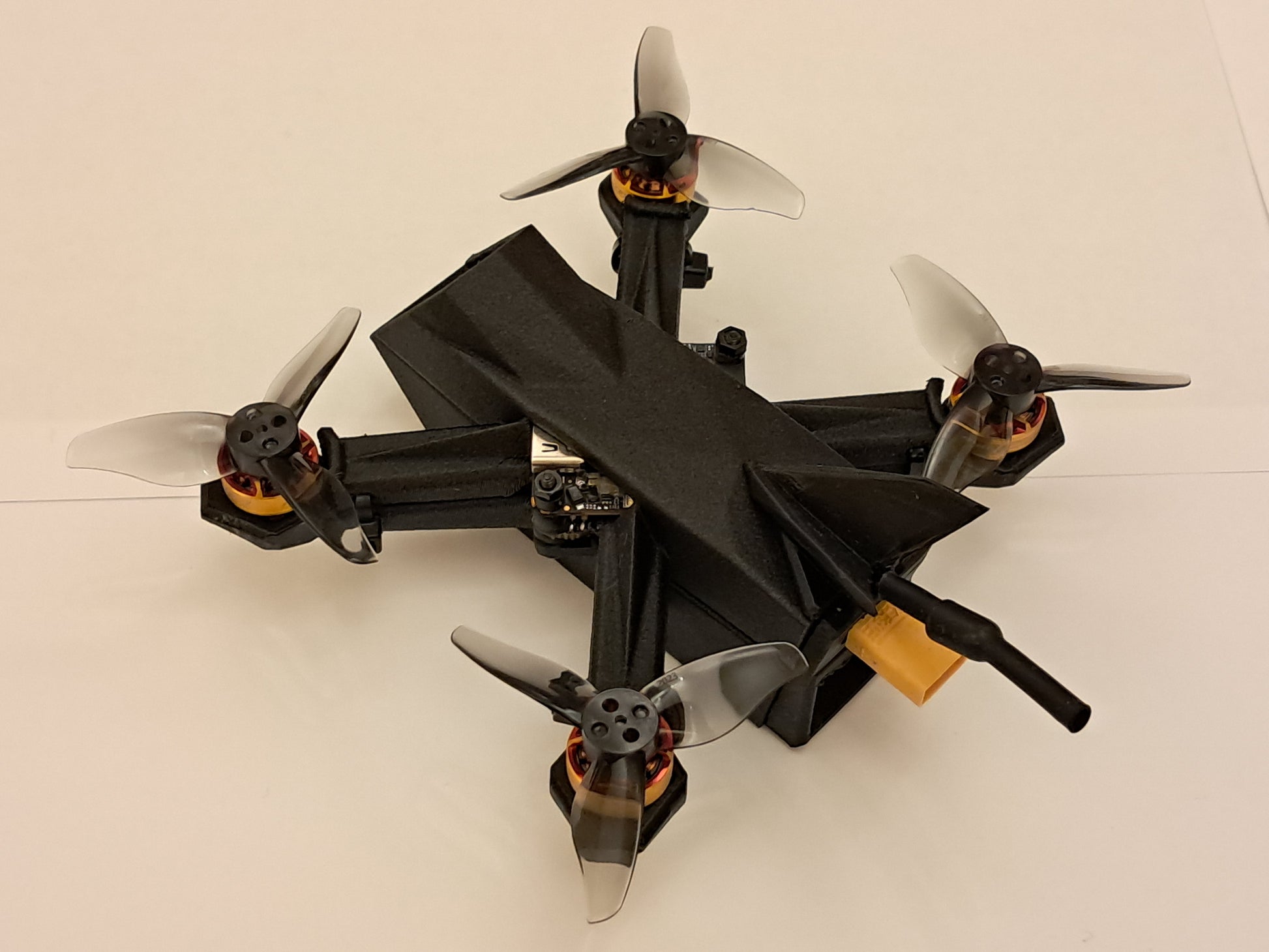

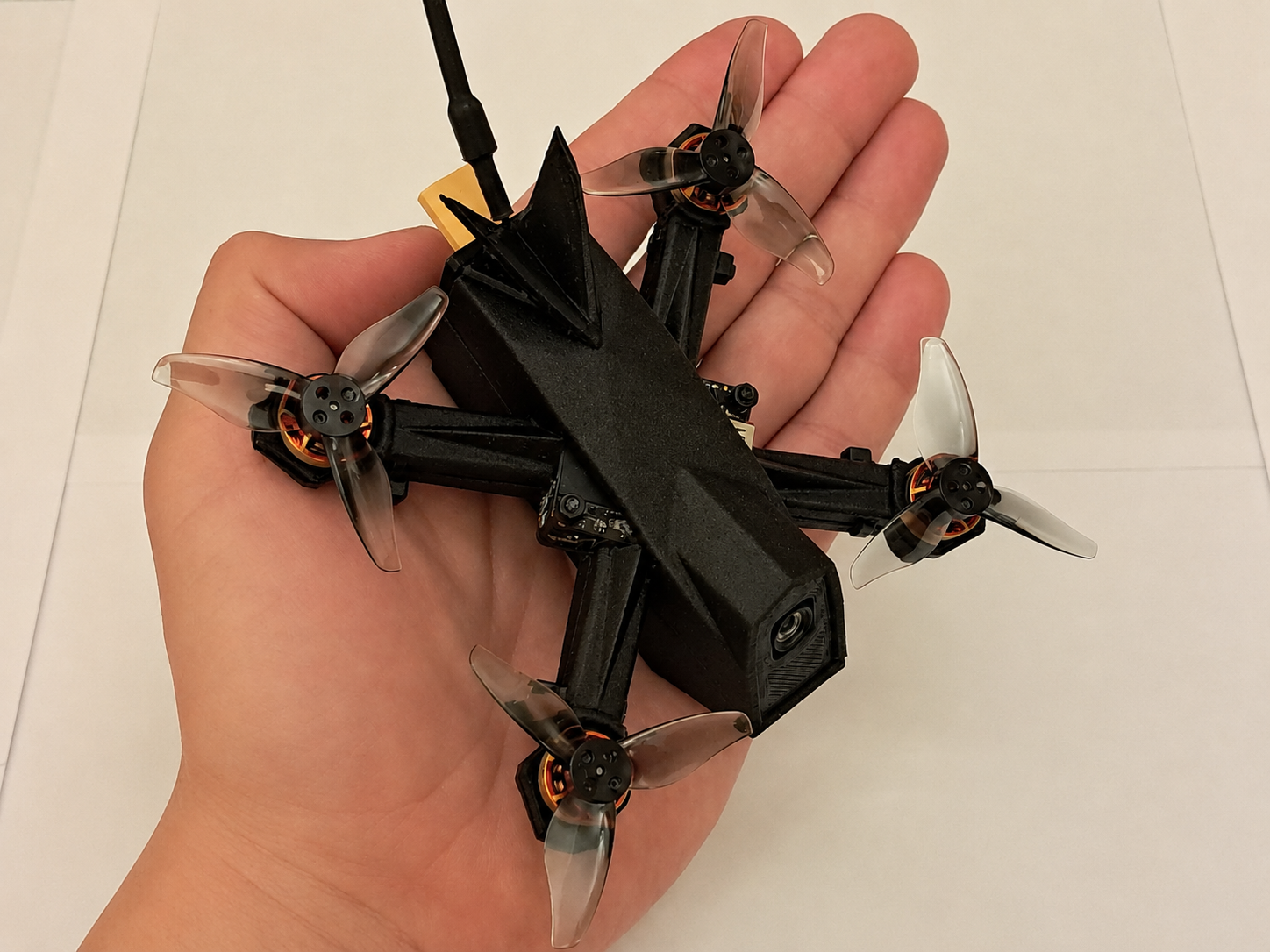

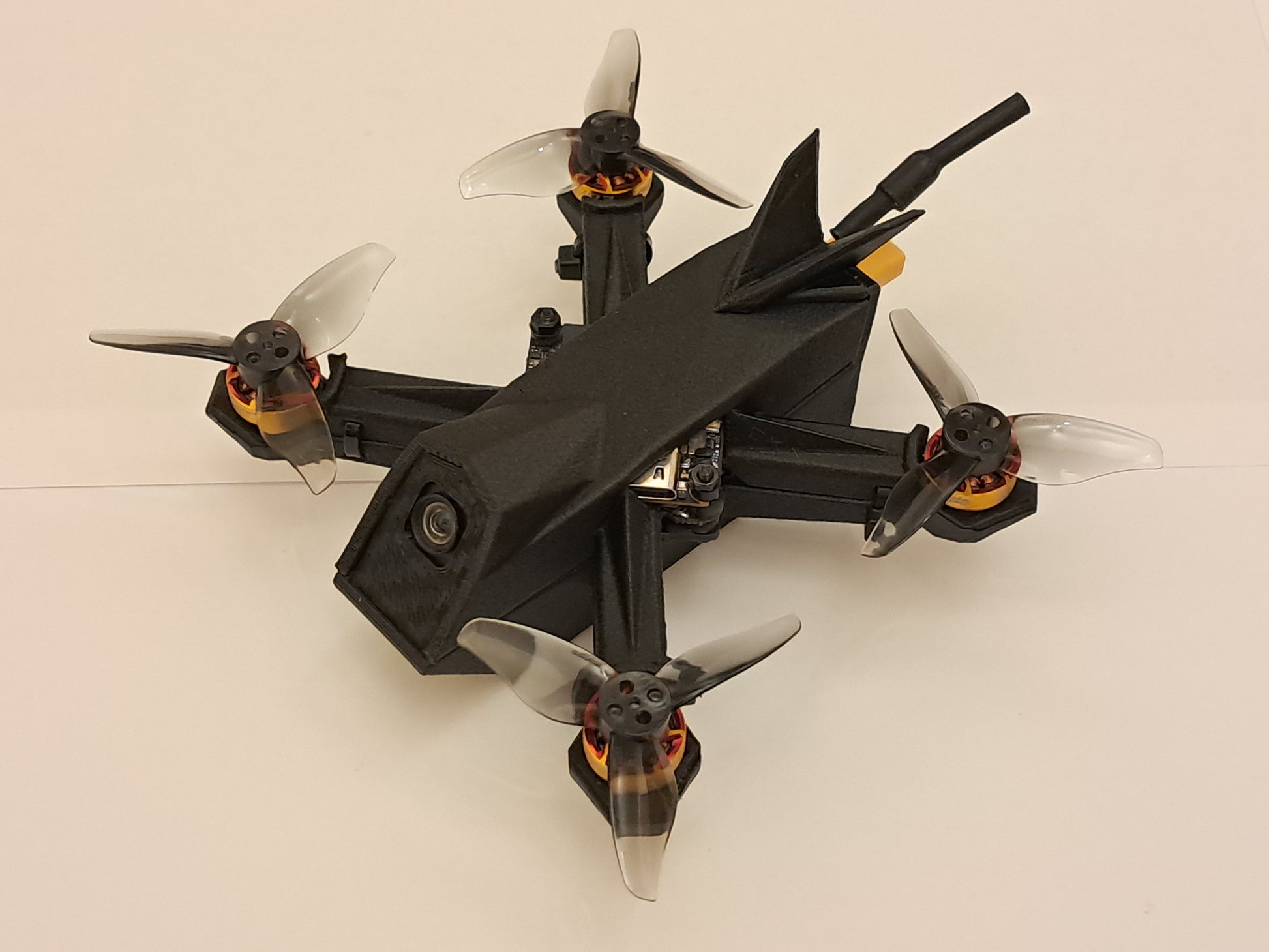

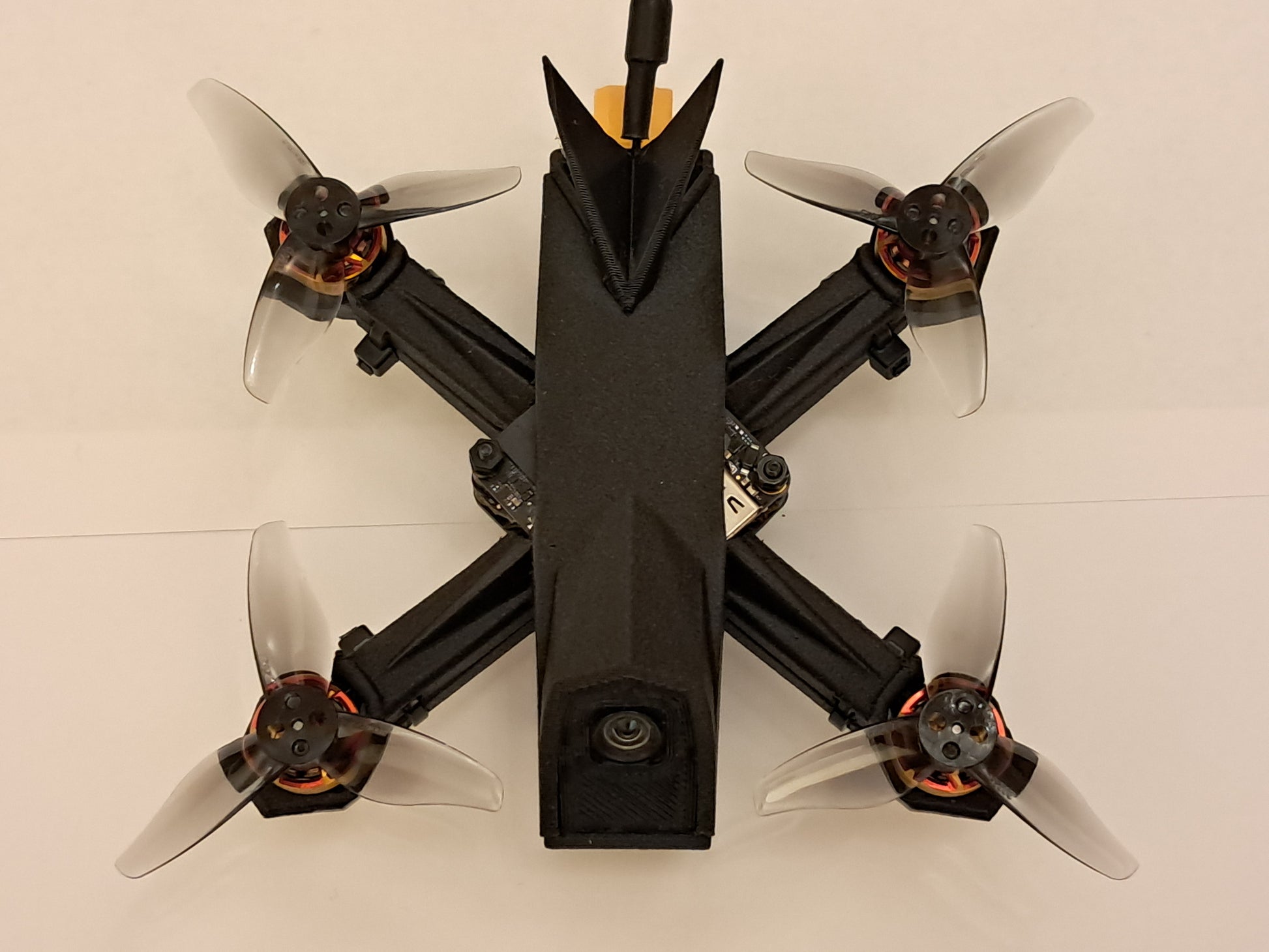

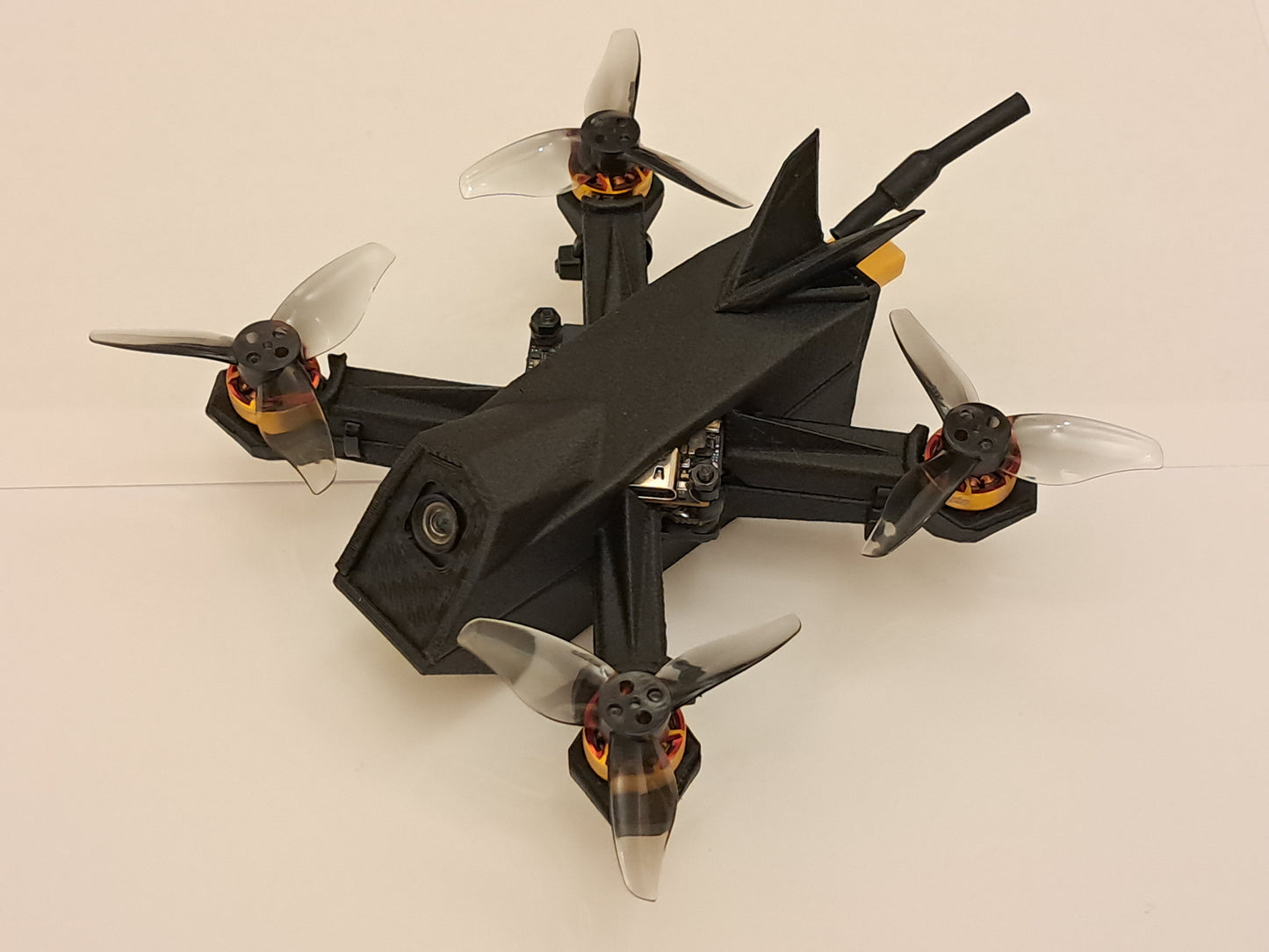

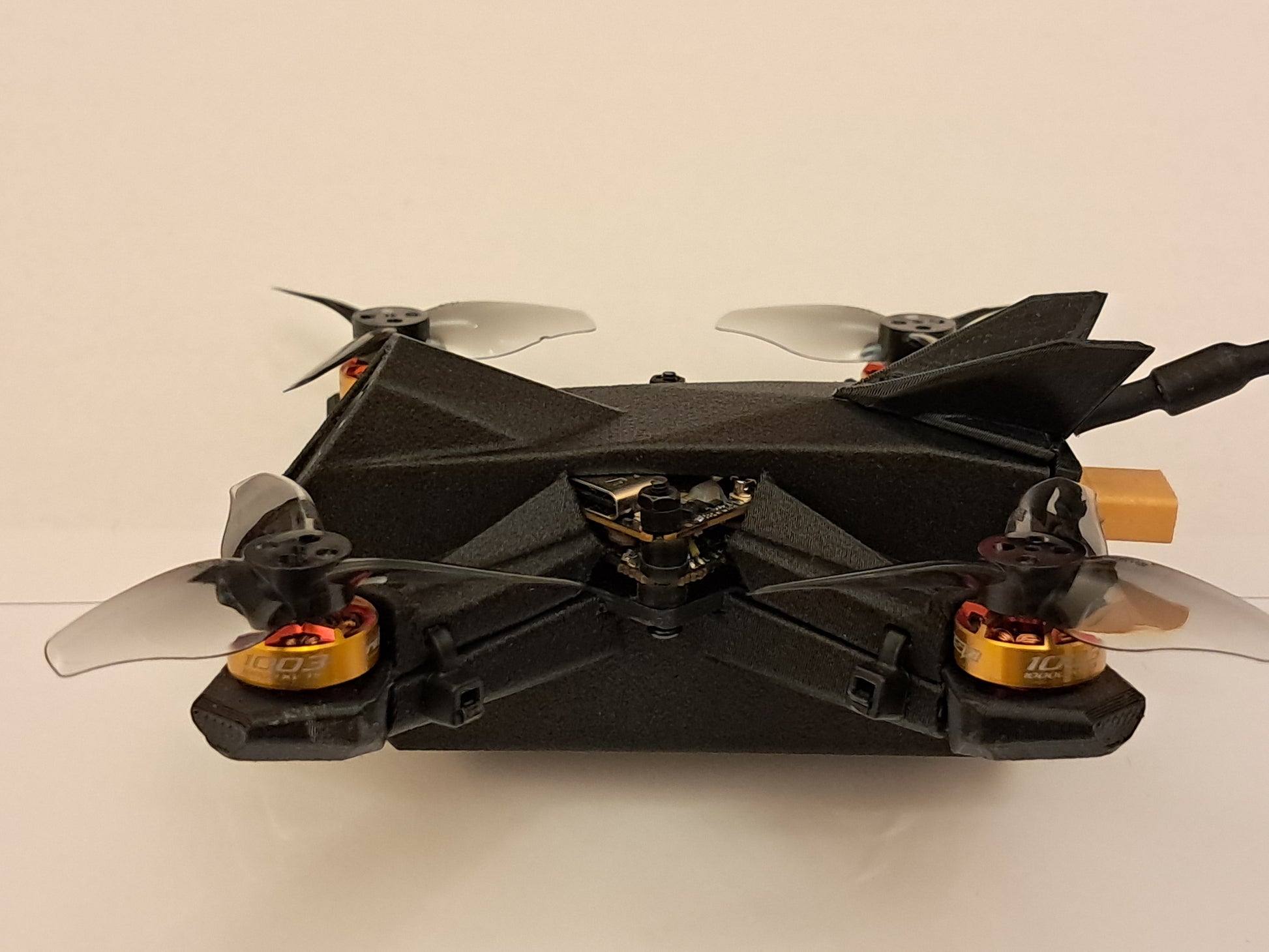

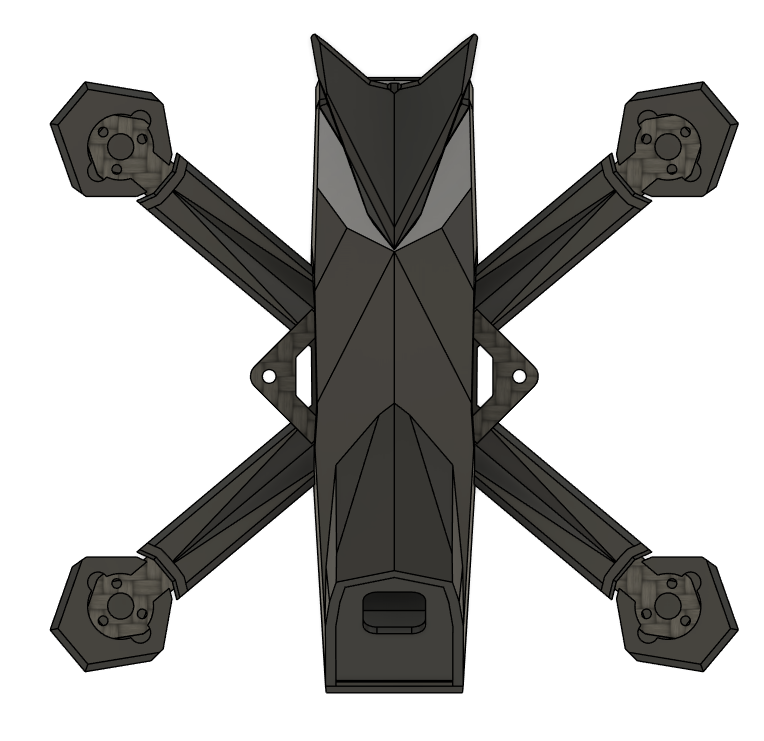

The EVO2 2" Racing Frame was designed by Evolution Drones as a lightweight micro FPV platform built around speed, agility, repairability, and customization.

Instead of locking the aircraft into a traditional whoop-style frame, EVO2 gives builders a more aggressive micro-racer architecture with replaceable printed components, multiple camera options, motor protection, and a lightweight carbon-fiber center structure.

The platform is designed around 2" propellers and a compact 2S power system, making it small enough for tight spaces while still delivering the responsive flight characteristics of a purpose-built FPV racer.

This version is provided as a digital download for builders who want to print and assemble EVO2 themselves.

Specifications

Frame class	2" micro racer
Target all-up weight	Under 100 g depending on build
Example build weight	Approx. 93 g with 550mAh battery
Battery	2S 550mAh LiPo recommended
Propellers	2"
Camera options	HDZero Lux and DJI O4 Lite
Frame architecture	Carbon-fiber center plate + 3D-printed components

Built for Micro FPV Performance

EVO2 is designed for FPV builders who want a small aircraft without being limited to a traditional whoop-style chassis.

The design is built around:

• 2" propellers
• Lightweight micro FPV electronics
• 2S power
• Compact racing geometry
• Replaceable 3D-printed frame components
• Integrated motor protection
• HDZero camera support
• DJI O4 Lite camera support
• Modular rear mounting
• Replaceable tail-fin design
• 3D Printable frame included
• Carbon-fiber frame 2mm (Sold Separately)

The result is a lightweight, responsive platform that can be configured around your preferred electronics or used as the basis for upgrading compatible components from an existing micro or 85mm-class FPV build.

What You Receive

You’ll receive the EVO2 digital STL design files for personal fabrication and assembly.

The files are intended for builders who want to print their own EVO2 components, produce replacement parts after crashes, experiment with different materials and colors, or maintain and modify their own EVO2 build over time.

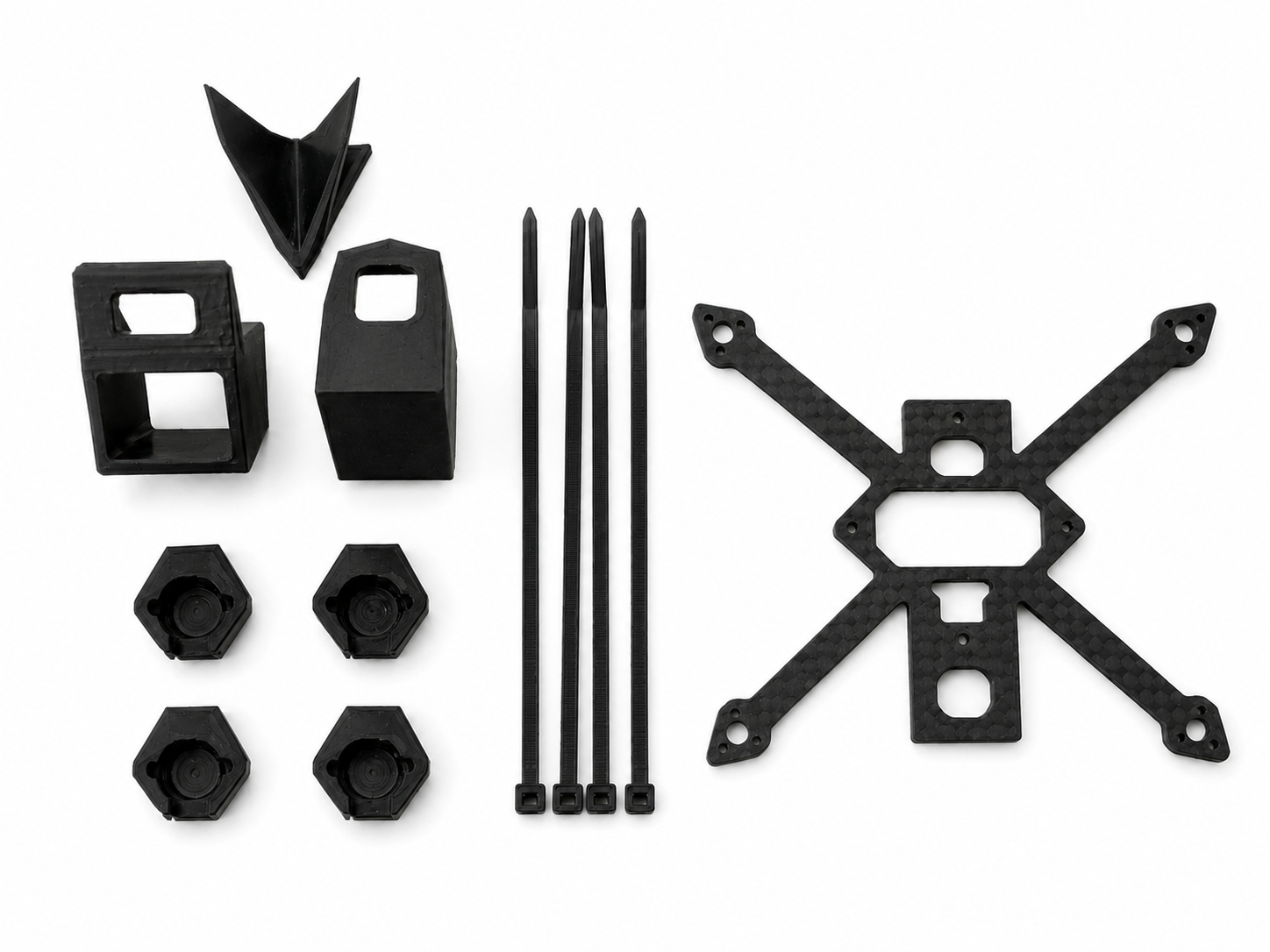

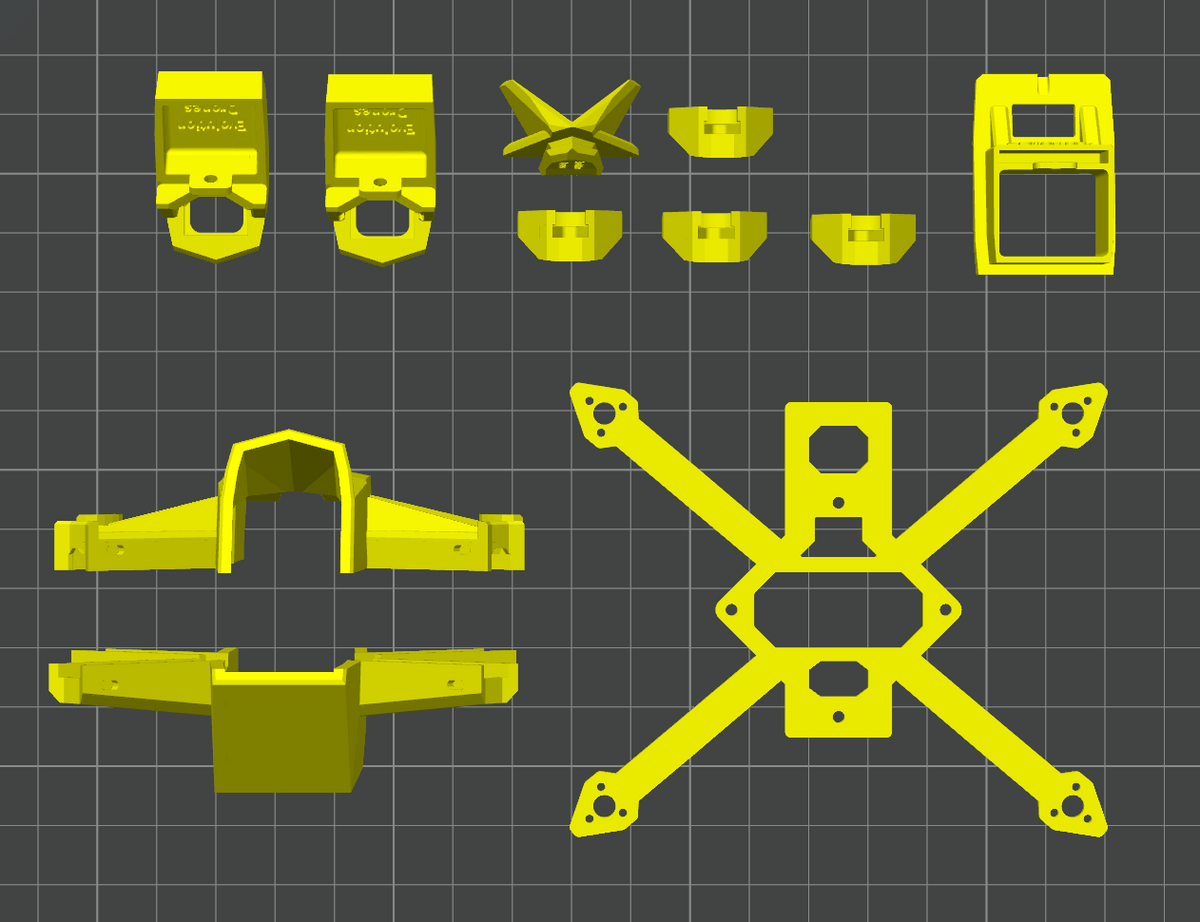

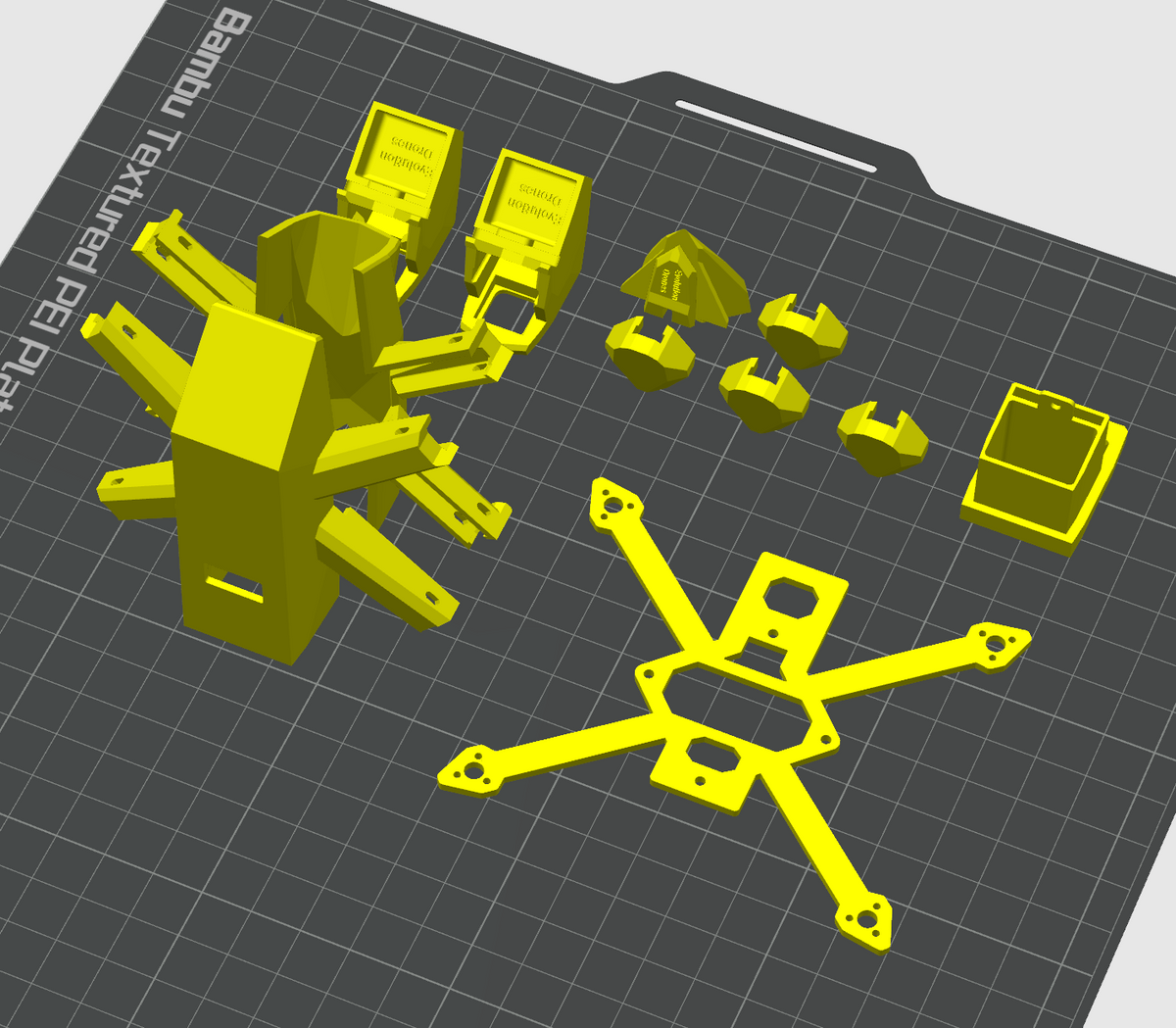

Included digital designs cover EVO2 printable components such as:

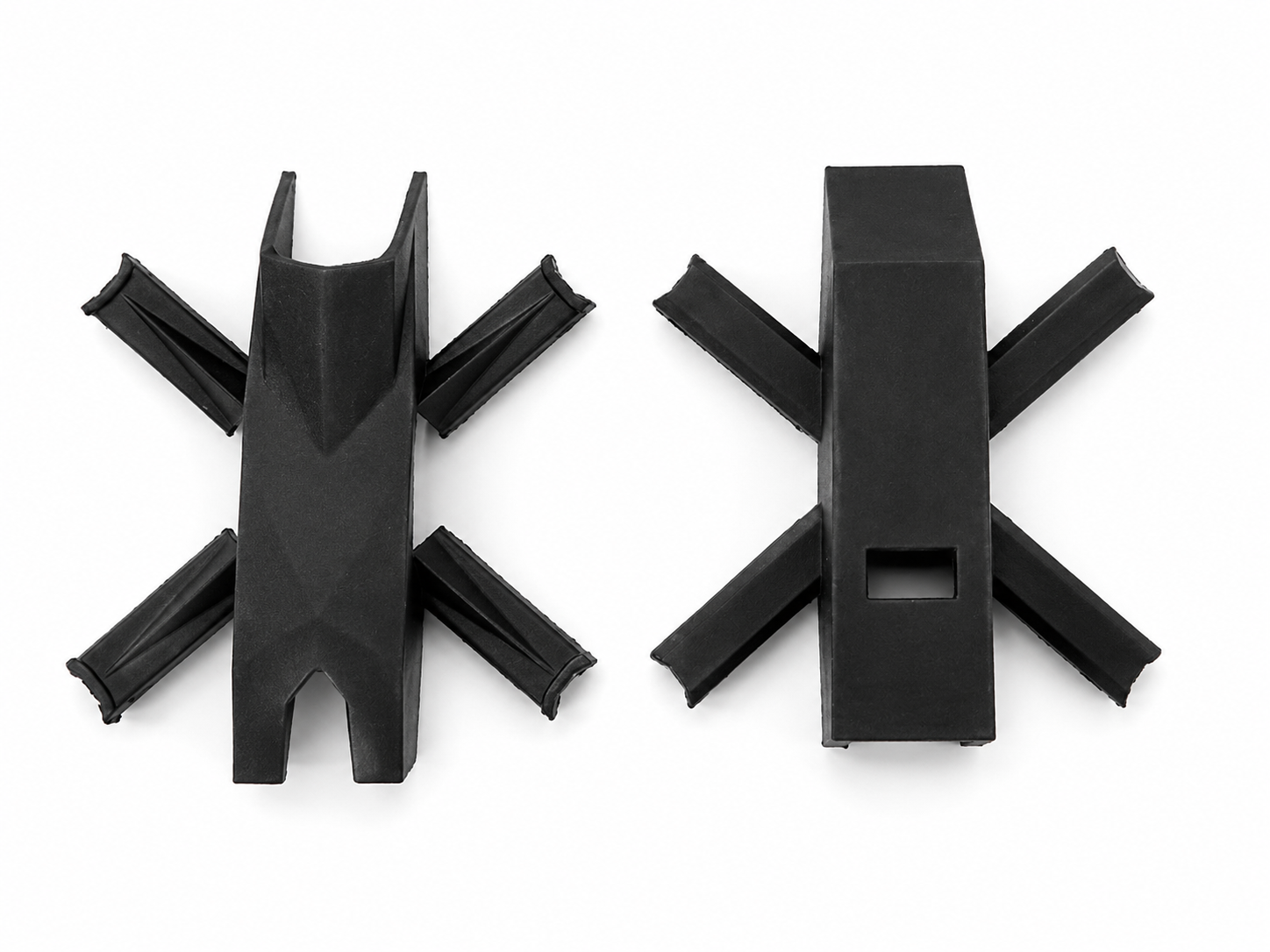

• Top shell
• Bottom shell
• Motor guards
• HDZero camera pod
• DJI O4 Lite camera pod
• Rear mount
• Tail fin
• Other EVO2 printable components included with the download

STL files only.

No physical product is shipped with this version.

Personal Use License

The EVO2 digital files are provided under the Evolution Drones Personal Use License.

You may:

• Download the STL files to devices you own or control
• 3D print or otherwise fabricate EVO2 components for your own personal use
• Produce multiple copies for personal use, including spare and crash-replacement parts
• Build additional EVO2 frames for your own personal use
• Modify or customize the design for your own personal builds
• Share photos and videos of your completed EVO2 builds

You may not:

• Share, redistribute, upload, gift, or resell the digital files
• Sell the original or modified EVO2 design as a digital product
• Publish or distribute modified versions of the design
• Manufacture EVO2 frames, parts, kits, or complete builds for commercial sale
• Operate a print-on-demand or commercial build service using the EVO2 design without a separate Commercial License

Commercial use requires a separate license from Evolution Drones.

Required Components — Not Included

To complete an EVO2 build, you will need compatible FPV components and hardware, including:

• EVO2 carbon-fiber structural plate
• Compatible micro flight controller / ESC
• 4× compatible micro FPV motors
• 4× 2" propellers
• Compatible FPV camera and video system
• Compatible radio receiver where required
• 2S LiPo battery
• Mounting hardware
• Zip ties and other assembly hardware as required

Depending on your configuration, additional antennas, wiring, connectors, fasteners, or mounting components may also be required.

Carbon-Fiber Plate

The EVO2 carbon-fiber structural plate is NOT included with this digital download.

The carbon-fiber plate shown in product images is a physical structural component and must be obtained separately.

The digital download contains the 3D-printable EVO2 STL components only.

Camera Options

The EVO2 download includes mounting options designed for:

• HDZero Lux
• DJI O4 Lite

Actual camera and video-transmission hardware are not included.

Builders are responsible for verifying fitment with their specific electronics and configuration.

Printing Recommendations

The EVO2 printable components are intended for functional FPV use where strength, impact resistance, and low weight are important.

For structural shell components, durable engineering materials such as Nylon Carbon Fiber / PA-CF may be used where appropriate.

Final durability will depend on:

• Printer calibration
• Material selection
• Layer orientation
• Wall count
• Infill
• Print temperature
• Layer adhesion
• Overall print quality

The builder is responsible for inspecting all printed components and verifying structural integrity before flight.

Made for Builders

EVO2 is intended for FPV enthusiasts who are comfortable with 3D printing, drone assembly, electronics installation, soldering, motor setup, Betaflight configuration, and general FPV troubleshooting.

This is not a complete ready-to-fly drone.

It is a digital frame-design package intended for builders who want to create, repair, modify, and maintain their own EVO2 micro racer.

Assembly may require:

• 3D printing and post-processing
• Electronics installation
• Soldering
• Motor installation
• Camera installation
• Receiver installation
• Hardware fitting
• Propeller installation
• Betaflight configuration
• Motor-direction verification
• Flight-controller tuning
• General FPV troubleshooting

Intermediate FPV building experience is recommended.

Why EVO2?

EVO2 was designed around a simple idea: a small FPV racer should be fast, repairable, customizable, and fun to experiment with.

Crash a motor guard?

Print another.

Want to try a different material or color?

Print another set.

Change your camera system?

Use the appropriate EVO2 camera configuration.

The downloadable format gives you the ability to maintain your own aircraft instead of depending on replacement printed parts every time something gets damaged.

From backyard ripping and garage courses to tight technical spaces and micro racing, EVO2 gives builders a compact platform designed to evolve with their setup.

Print it. Build it. Rip it.

Important

This is a digital product only. No physical parts will be shipped.

The 3D printable structural plate is included with download.

Please note - Carbon-fiber structural plate is not included.

Motors, propellers, flight controller, ESC, FPV camera system, video transmitter, receiver, antennas, batteries, hardware, carbon-fiber components, zip ties, and other physical components are not included.

Digital purchases are subject to the Evolution Drones Digital Product License Agreement.

Because of the nature of downloadable products, sales are final once the files have been accessed or downloaded, except where required by applicable law.

The EVO2 is an independently developed Evolution Drones FPV frame platform.
