EVO2 – 2" Carbon Fiber & Printed Frame Kit

Compact Power. Built to Rip.

The EVO2 2" Carbon Fiber & Printed Frame Kit by Evolution Drones is designed as a lightweight micro FPV racing platform built around speed, agility, repairability, and customization.

Rather than using a traditional whoop-style frame, EVO2 combines a 2 mm carbon fiber center frame with durable PETG canopy components and flexible TPU mounting and protection parts.

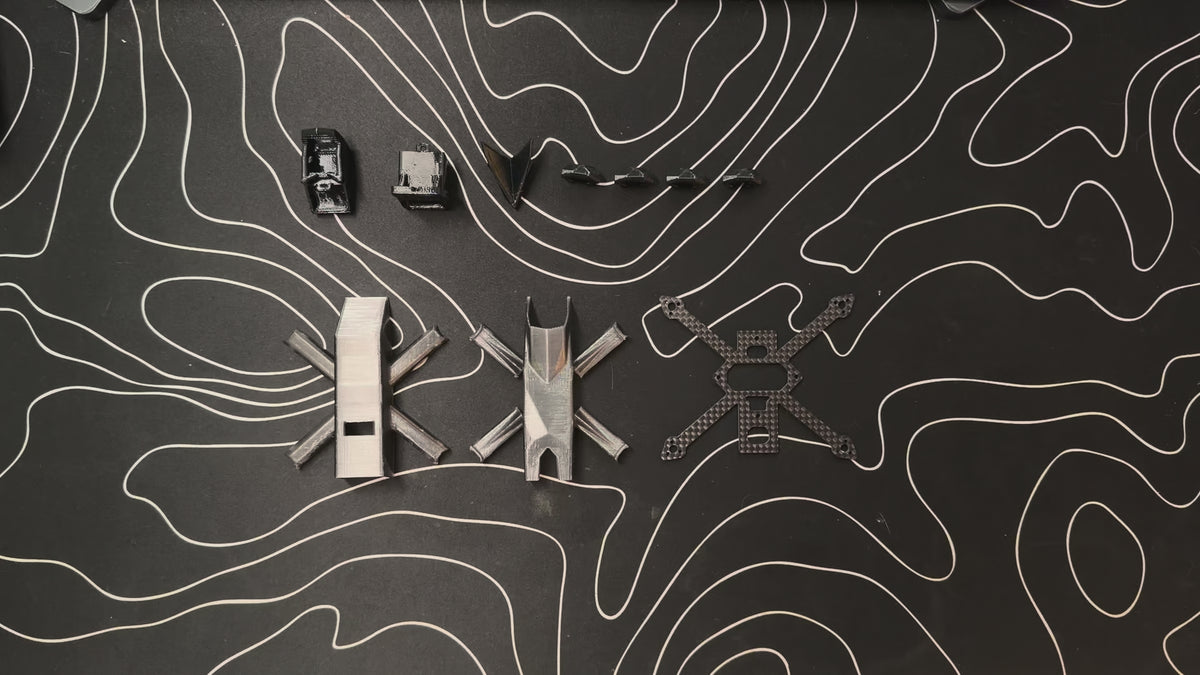

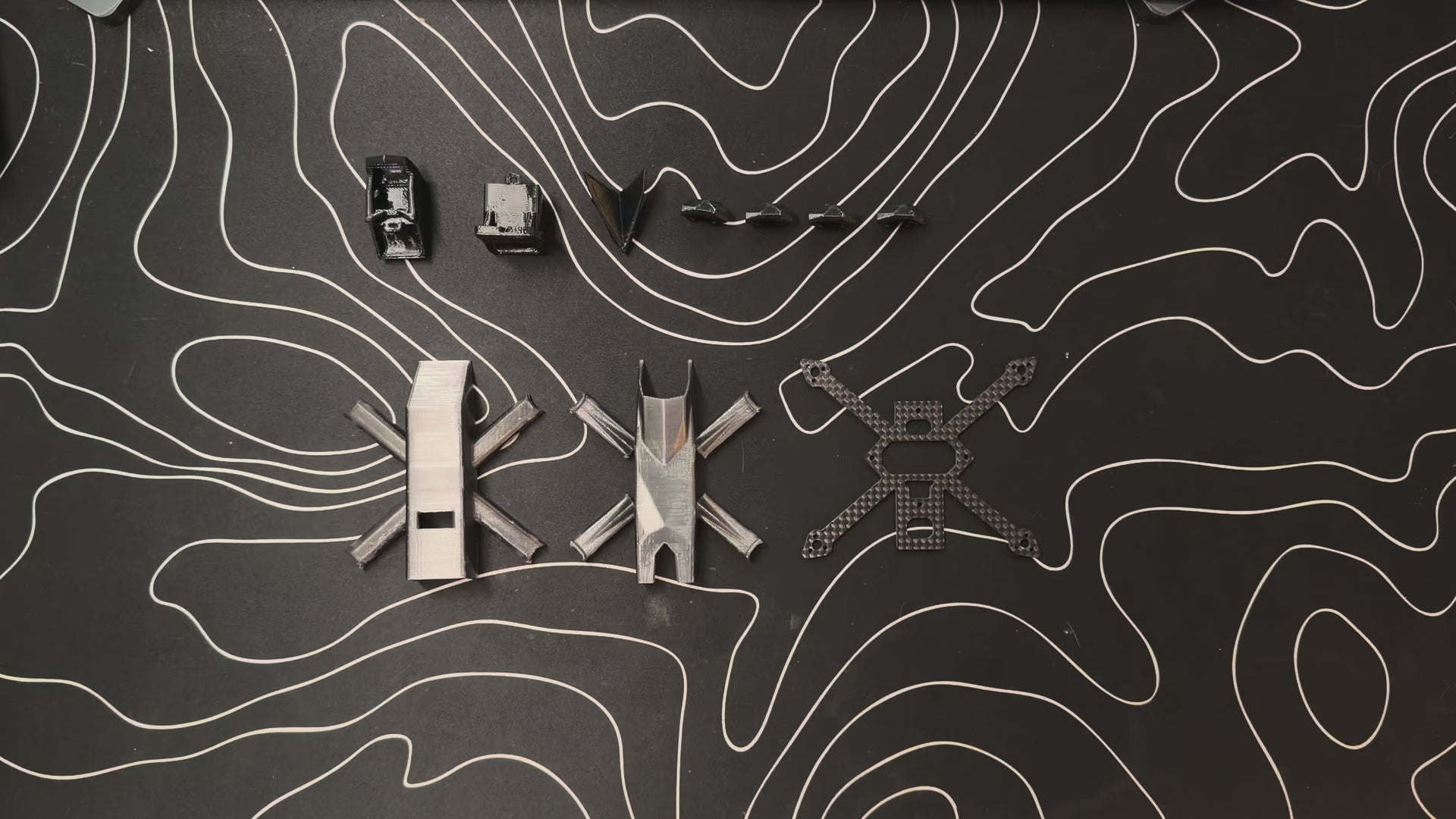

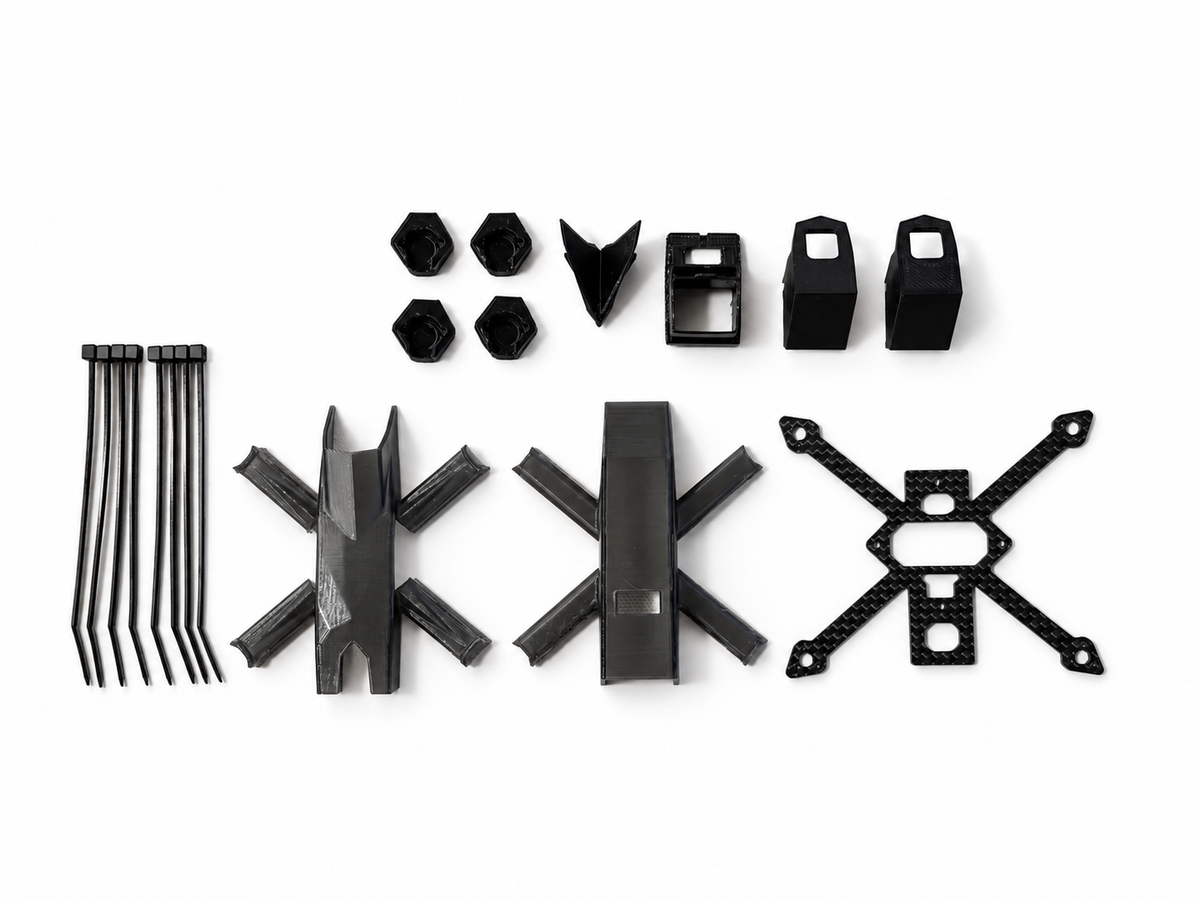

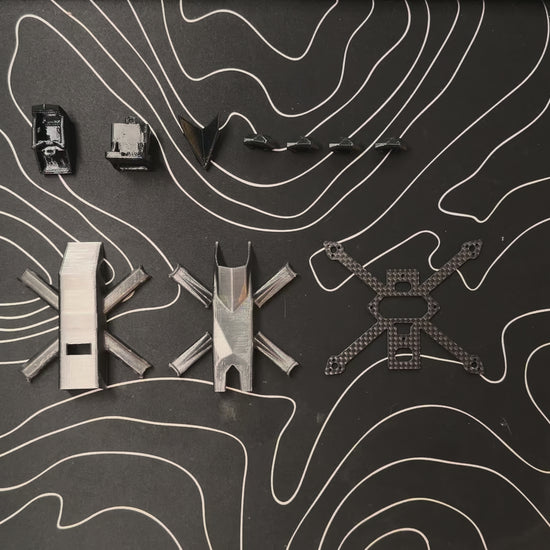

This kit includes the carbon fiber frame, PETG canopy shells, TPU components, and zip ties required to assemble the EVO2 airframe.

What's Included

Carbon Fiber Component

The EVO2 uses a lightweight 2 mm carbon fiber center frame as the main structural foundation of the aircraft.

PETG Components

The upper and lower EVO2 canopy shells are printed in PETG to provide a lightweight but durable body structure around the electronics.

TPU Components

Flexible TPU components provide camera mounting, motor protection, and additional frame features.

Both camera pod options are included, allowing the EVO2 to be configured around either an HDZero Lux or DJI O4 Lite camera system.

Assembly Items

The kit also includes the zip ties used to secure the EVO2 canopy shells.

Built for 2" Micro FPV

EVO2 was developed as a compact 2" micro FPV racing platform for builders who want something different from a conventional whoop frame.

The design is built around:

• 2" propellers

• Lightweight micro FPV electronics

• 2S power

• Compact racing geometry

• 2 mm carbon fiber center frame

• Replaceable printed components

• Integrated TPU motor protection

• HDZero Lux camera support

• DJI O4 Lite camera support

• Modular rear mounting

• Replaceable tail-fin design

The combination of carbon fiber, PETG, and TPU allows each material to serve a specific purpose within the airframe.

The carbon fiber frame provides the primary structural foundation, the PETG canopy shells create the main body structure, and the TPU components provide flexible protection and mounting around impact-prone areas.

Camera Compatibility

The EVO2 kit includes camera pods designed for:

• HDZero Lux

• DJI O4 Lite

Both camera pods are included with the kit.

Actual cameras, video transmitters, antennas, and other FPV electronics are not included.

Builders are responsible for verifying fitment with their specific electronics and configuration.

What Is Not Included

This listing includes only the EVO2 carbon fiber frame, printed components, and assembly items specified above.

The following are not included:

• Motors

• Propellers

• Flight controller / ESC

• FPV camera

• Video transmitter

• Radio receiver

• Antennas

• Battery

• Wiring

• Electronic components

• Additional hardware or fasteners not specifically listed above

Compatible FPV electronics and powertrain components are required to complete the build.

Recommended Configuration

EVO2 is designed around a lightweight 2S micro FPV setup.

Typical configuration:

Actual final weight will depend on the electronics, motors, battery, receiver, wiring, and FPV system selected.

Important Information

EVO2 is intended for experienced FPV builders and is not a ready-to-fly drone.

Assembly requires installation of compatible electronics and may require:

• Soldering

• Motor installation

• Flight controller / ESC installation

• Camera installation

• Receiver installation

• Propeller installation

• Betaflight configuration

• Motor-direction verification

• Flight-controller setup and tuning

Builders are responsible for proper assembly, inspection, configuration, testing, and safe operation of the finished aircraft.

EVO2 is an independently developed FPV frame platform designed by Evolution Drones.
