Transplanting the DJI Avata: Building a Drone That Was Never Meant to Exist

Most people buy a DJI Avata and fly it. I buy DJI products and take them apart.

This is the story of an ongoing project that started with a frustrating first flight, escalated through a near-catastrophic crash into a neighbor's yard, and has evolved into something I genuinely believe could change how people think about owning drones: a fully open, printable frame that transplants the Avata 1's brain into a wider, quieter, more capable body. If the drone breaks, you print a new one. No supply chain, no waiting list, no "out of stock" page.

But let me back up.

The First Flight That Started Everything

The first time I took the stock DJI Avata out for a flight, I went to a parking lot near my house, expecting to be impressed. I'd seen the marketing. I'd watched the cinematic shots. I was ready for the magic.

What I got instead was a drone that felt rigid in the air and screamed like a leaf blower. The stock propellers were genuinely deafening. The flight characteristics felt locked-down in a way that didn't match the freeform aesthetic DJI was selling. It wasn't bad — it was just... constrained. Like driving a sports car that refuses to leave second gear.

I've felt this with a lot of DJI products. They're beautifully engineered consumer experiences, but the hardware inside is almost always capable of more than the firmware and chassis allow. So I do what I always do: I fly it a few times, then I take it apart on my workbench to understand what's actually in there and what could be possible if the frame got out of the way.

The Avata's internals were promising. The flight controller, the VTX, the camera stack, the GPS module — all of it was solid. The frame and propellers were the limiting factors. That's when the idea took root: what if the Avata's electronics could live in a completely different body? Something wider, with bigger props, more efficient, quieter, and tuned more like a freestyle quad than a cinematic cruiser?

The Disastrous Maiden Flight

The first real test of the concept was a retrofit, not a ground-up build. I grabbed a BetaFPV Pavo35 frame — already a known-good 3.5" platform — and started fitting the Avata electronics into it. I 3D printed a handful of custom parts to hold the camera, battery, and the assorted Avata-specific components that don't have an obvious home in an FPV frame.

I also made a decision I would later regret: I swapped in RCINPower 1506 4300KV motors. They're great motors. They're also significantly more current-hungry than what the stock DJI ESCs were designed to push. I told myself it would be fine. The math was close enough. I'd been careful.

Maiden flight, in my backyard.

I armed the drone. It shot straight up.

Not "took off." Shot up. Spinning, completely uncontrolled, climbing somewhere between 200 and 300 feet before the link broke and gravity took over. It came down in a neighbor's front yard on the street above mine. By the time I got to it, the airframe was obliterated. Cables were torn out of the flight controller. The GPS unit was destroyed. The camera was mangled.

I stood there in someone else's yard holding what was left of an Avata, and I had a very clear thought: if I keep doing this without better safety practices, I am eventually going to start a fire or hurt someone.

That thought changed how I approach this project entirely.

What I Learned From The Crash

I ended up buying a used Avata off eBay just to harvest the GPS unit and front camera, since the cable connectors on the originals were torn beyond saving. With the electronics reassembled, I set up a much more careful test rig.

I tied the drone to a heavy bucket of sand.

This sounds primitive, and it is. It's also extremely effective. A sandbag tether gives you a hard physical limit on how far things can go wrong. If the motors spool up the wrong direction, if a prop is on backwards, if the ESCs misinterpret a signal — the drone fights against the rope and you can disarm before anything catches fire or flies into a window. Every modification project I do now starts tied to that bucket.

This time I went through every motor direction, every prop orientation, every ESC mapping before I touched the throttle. When I finally armed it, the drone hovered cleanly. I moved it into the garage and ran a series of additional controlled tests. Everything passed.

That moment was the real proof of concept. Not the first attempt, which was hubris. This one. It confirmed that the Avata's hardware could be fully transplanted into a non-native frame and still behave correctly — if you respected the engineering and didn't skip steps.

What I'm Building Now

Months passed. Other projects took priority, the way they always do. But I kept coming back to this one mentally, sketching frame geometries, thinking about how to make something that wasn't just a retrofit but a purpose-built evolution of what the Avata could be.

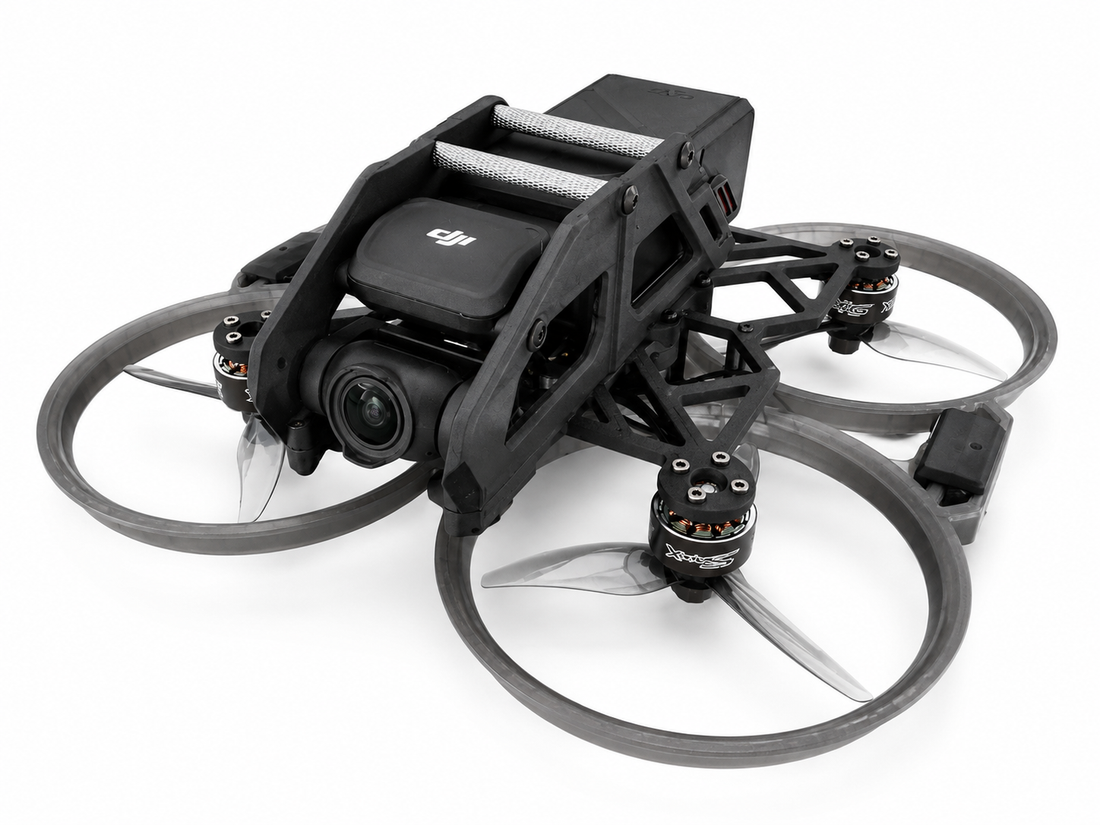

The current build is exactly that. A new frame designed from scratch, with a wider stance than the stock Avata, sized for propellers up to 3.5" — and with enough clearance that I'll likely experiment with 4" props as well. Larger props at lower RPM means more efficient thrust, longer flight times, and dramatically less noise. That deafening whine of the stock Avata is one of the first things this build is designed to fix.

The internal hardware cage that holds the camera, GPS, and battery has also been redesigned. The stock layout treats those components as deeply integrated parts of the airframe; my version treats them as a modular payload that can be lifted out, serviced, and swapped between frames. If a frame cracks, the brain doesn't go with it.

Right now I'm in the migration phase — moving the electronics into the new frame and getting ready for the next round of tests. The bucket of sand is staying close.

Why This Becomes a Digital Product

Here's the part that I think matters most, and why I'm writing about this now instead of waiting until it's "done."

A few people have expressed interest in owning one of these frames. My instinct was to figure out how to manufacture and ship them. But every time I've watched someone try to build a small drone hardware business, the same wall shows up: global fulfillment is brutal. Customs, shipping damage, inventory, returns, regional regulations — it's a nightmare for a one-person operation, and it's an even bigger nightmare for the customer who has to wait six weeks for a part that costs less than the shipping.

So the plan is to skip that entirely. This drone will be a digital product. You download the design files, you print the parts at home, and you build it yourself with off-the-shelf hardware and a donor Avata. If you crash it — and you will, that's what these drones are for — you don't file a warranty claim. You walk over to your printer and make a new arm. You're back in the air the same day.

That's the part of this project I'm most excited about. Not the build itself, but the model. A drone that's resilient because its supply chain is your desk.

What's Next

The immediate next steps are finishing the electronics migration into the new frame, running tethered tests, and then doing a careful series of low-altitude hover flights. After that, propeller experimentation — comparing 3.5" performance against the 4" setup, looking at flight time, noise, agility, and thermal behavior on the ESCs.

I'll be documenting all of it here, including the parts that don't work. Especially the parts that don't work. The crash in my neighbor's yard was the most useful thing that happened to this project, and I'd rather share those moments than pretend everything went smoothly.

If you've ever looked at a DJI product and thought "this could be so much more if it just got out of its own way" — this project is for you. And eventually, hopefully soon, the files to build your own will be too.

Stay tuned. And if you fly something modified, please — tie it to a bucket first.
